High definition 220V Strip - 5630-112-24V-CCT-10mm led flexible strip light – Vision Detail:

Model No. VS-F560-24V-5630-10mm-CCT

● Cut Length:(mm):  62.5mm for 24V
● Number of LEDs / Meter: 112
● Power (W/M): 23W
● Input voltage (V) : 24V DC
● CRI:>90
● Beam Angle: 120°
● FPC Width (mm): 10mm
● IP Rate: IP20, IP65, IP67, IP68
● Warranty: 3 years
● Work Environment: -25°~ 45°
● Kelvin: CCT from 2600K to 6500K



kjhg

What is 5630 LED Strips and Why 5630 LED Strip?

5630 SMD LED Strips, just from its name, 5630 SMD LED, We know its size: 5.6mm x 3mm. It is the earlier taken leds.
The biggest advantage of 5630 SMD LED, it is brighter a lot than 3528 SMD LED, also 5050 SMD LED.
If you need led strips that are bright enough, We suggest 5630 SMD LED Strips.

Parts of our 5630 LED Strips from us below, more detailed list, just contact with us for it now!



60LEDs/Meter

Emitting Color Kelvin Lumen (LM/Meter) CRI LED Quantity Widness of FPC Work voltage Power Cutting Size (mm)
 111Cool white 6000-6500K 1800LM(±10% ) >90 60LEDs/m, 300LEDs/roll 6mm10mm DC12V.  DC24V 14.4W/M.72W/Roll5Meter a roll DC12V:50mm  DC24V:100mm
 2Natural white 4000-4500K
 3Warm white 2900-3100K

72LEDs/Meter

 111Cool white 6000-6500K 2200LM(±10% ) >90 72LEDs/m, 360LEDs/roll 10mm DC24V 17W/M.85W/Roll5Meter a roll
 2Natural white 4000-4500K
 3Warm white 2900-3100K

120LEDs/Meter

 111Cool white 6000-6500K 2800LM(±10% ) >90 120LEDs/m, 600LEDs/roll 10mm                    15mm DC24V 24W/M120W/Roll5Meter a roll DC24V:50mm
 2Natural white 4000-4500K
 3Warm white 2900-3100K

112LEDs/Meter

111
2CCT
3
2800-6000K 2800LM(±10% ) >90 112LEDs/m, 560LEDs/roll 10mm DC24V 23W/M.115W/Roll5Meter a roll DC24V:50mm

Accessories:


Product detail pictures:

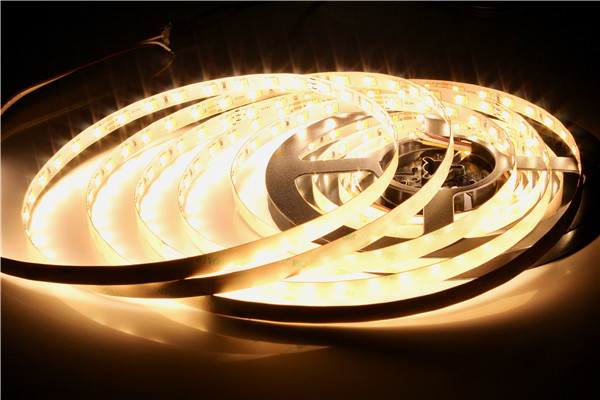

High definition 220V Strip - 5630-112-24V-CCT-10mm led flexible strip light – Vision detail pictures

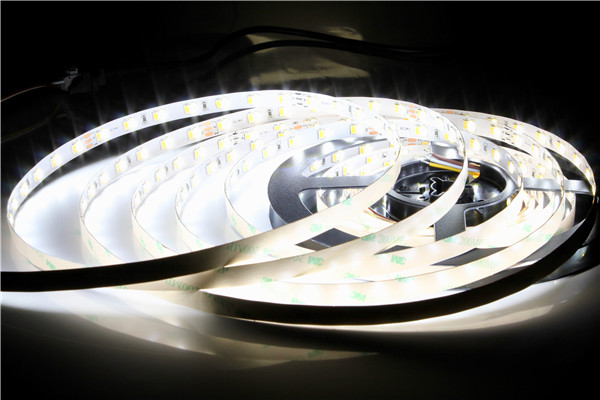

High definition 220V Strip - 5630-112-24V-CCT-10mm led flexible strip light – Vision detail pictures

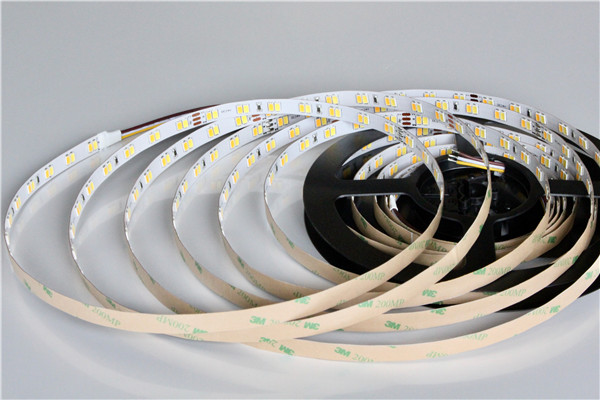

High definition 220V Strip - 5630-112-24V-CCT-10mm led flexible strip light – Vision detail pictures

High definition 220V Strip - 5630-112-24V-CCT-10mm led flexible strip light – Vision detail pictures
