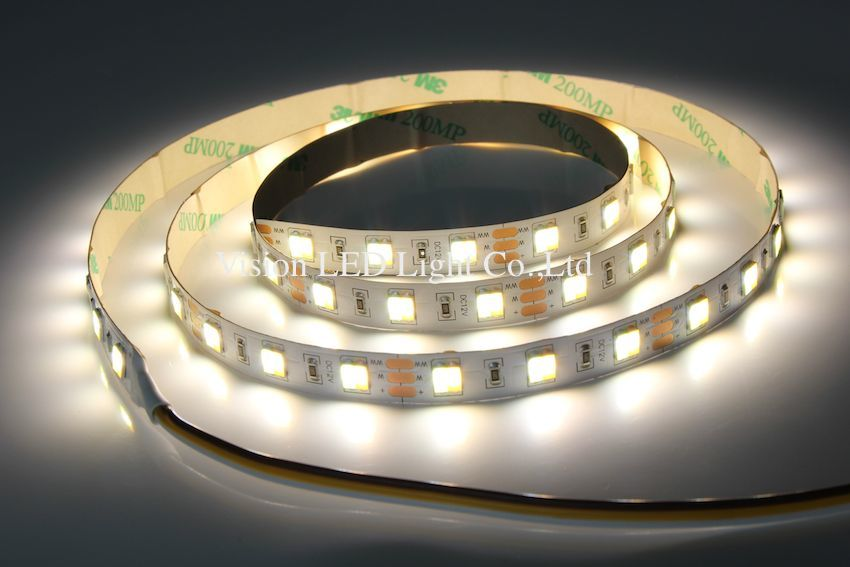

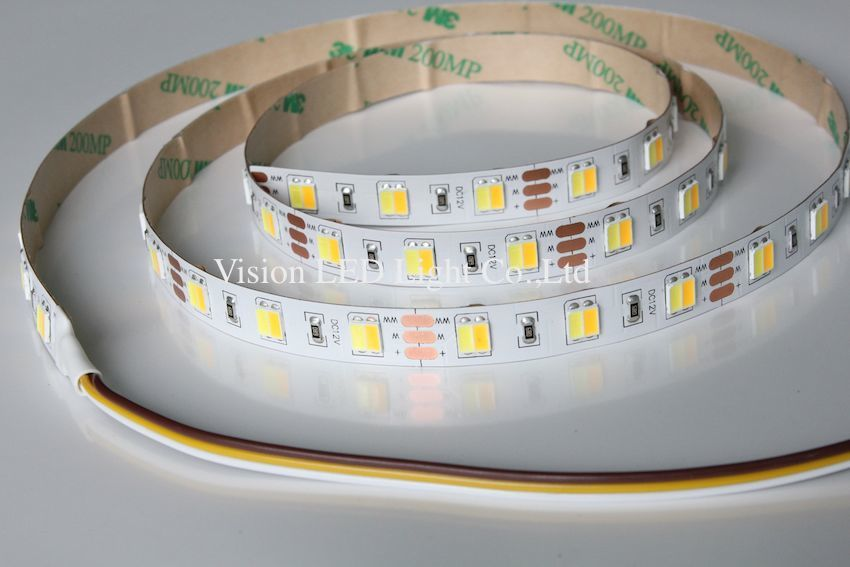

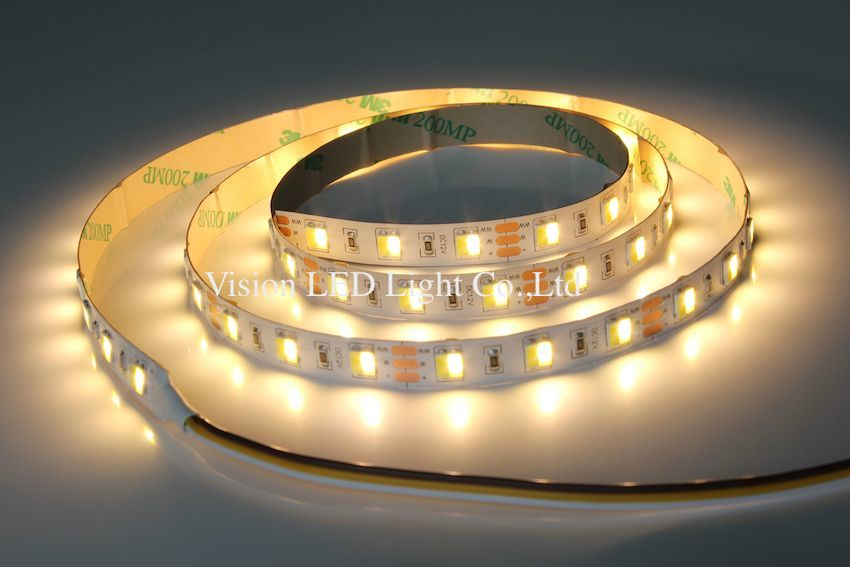

5050-60-12V 24V-10mm (CCT series) led flexible strip light

CCT, any kinds of white color you could achieve.

  • adfa_01
  • adfa_03
  • adfa_05
  • adfa_07
  • adfa_09
  • adfa_11
IP Rate:
  • ggrtjfjh_02
  • ggrtjfjh_04
  • ggrtjfjh_06
  • ggrtjfjh_08
  • ggrtjfjh_10

Product Detail

Product Tags

Model No. VS-F300-12V/24V-5050-10mm-CCT

● Cut Length:(mm): 50mm for 12V; 100mm for 24V
● Number of LEDs / Meter: 60
● Power (W/M): 19.2W
● Input voltage (V) : 12V/24V DC
● CRI:>90
● Beam Angle: 120°
● FPC Width (mm): 10mm
● IP Rate: IP20, IP65, IP67, IP68
● Warranty: 3 years
● Work Environment: -25°~ 45°
● Installation: 3M tape/ Mounting clips/ Aluminum profiles



hfg

What is 5050 LED Strips and Why 5050 LED Strip?



The abbreviation CCT stands for Correlated Color Temperature. It is a numerical indicator of the tones of white light an LED strip light can produce. It is measured in Kelvin (K).
CCT LED Strips, also called: Tunable White LED strips. Tunable White LED strips allow users to adjust the CCT of a light source to their desired color temperature. Through a controller you can select any color temperature in between 2600K-7000K. The strips have a powerful 2-in-1 package, with a warm white LED chip mounted inside of the same package with a cool white LED chip. The strips are availble in 12V and 24V configurations, use the 24V LED strip for larger projects and to complete long runs.

The advantage of CCT LED Strips

Tunable white LED strips allow users to adjust the correlated color temperature (CCT) of the light source through a controller or computerized lighting automation system. Tunable white technology is being adapted in schools, work spaces, and hospitals to improve productivity, comfort, and health amongst individuals. Warm lighting is associated with a warm and cozy feeling, it can help induce sleepiness and enhances the comfort of the space. Cool lighting, on the other hand, is associated with alertness and productivity. Since humans are adapted to the varying correlated color temperatures of daylight throughout the typical day, studies have shown that humans are healthier when the artificial source of lighting in their home, workspace, and/or school is varied throughout the day. In hospitals, tunable white lighting is becoming the hallmark of an improved patient experience, patients in hospitals with tunable white lighting systems are reporting a better quality of life! Use our tunable white LED strips, control solutions, and more to enhance your space.

Parts of our 5050 LED Strips from us below, more detailed list, just contact with us for it now!



60LEDs/Meter
Emitting Color Kelvin CRI LED Quantity Widness of FPC Work voltage Power Cutting Size (mm)
111Cool white 6000-6500K >90 60LEDs/m, 300LEDs/roll 8mm                      10mm DC12V.                 DC24V 14.4W/M.           72W/Roll           5Meter a roll  DC12V:50mm.     DC24V:100mm
2Natural white 4000-4500K
3Warm white 2900-3100K
4Blue 455-465nm
5Green 520-530nm
13Red 620-630nm
7Yellow 585-595nm
8Orange 595-605nm
96LEDs/Meter
111Cool white 6000-6500K >90 84LEDs/m, 420LEDs/roll 12mm   DC24V 23W/M.           115W/Roll           5Meter a roll  DC24V:62mm
2Natural white 4000-4500K
3Warm white 2900-3100K
60LEDs/Meter
111
2CCT
3
2800-6000K >90 60LEDs/m, 300LEDs/roll 10mm DC12V
DC24V
14.4W/M.
72W/Roll
5Meter a roll
 DC12V:50mm.
DC24V:100mm
60LEDs/Meter
13
5RGB
4
R:620~630nm.
G: 520~530nm.
B: 465~475nm.
>90 60LEDs/m, 300LEDs/roll 10mm DC24V 14.4W/M.
72W/Roll
5Meter a roll
DC12V: 50mm DC24V: 100mm
60LEDs/Meter
13
15RGBW
14
111
R:620~630nm.
G: 520~530nm.
B: 465~475nm.
W: 3000K, 4000K, 6000K
>90 60LEDs/m, 300LEDs/roll 12mm DC24V 19.2W/M.
96W/Roll
5Meter a roll
DC12V: 50mm DC24V: 100mm
60LEDs/Meter
13
15
14RGB+CCT
111
2
3
R:620~630nm.
G: 520~530nm.
B: 465~475nm.
W: 3000K, 4000K, 6000K
>90 60LEDs/m, 300LEDs/roll 12mm DC24V 19.2W/M.
96W/Roll
5Meter a roll
DC12V: 50mm DC24V: 100mm

Accessories:
