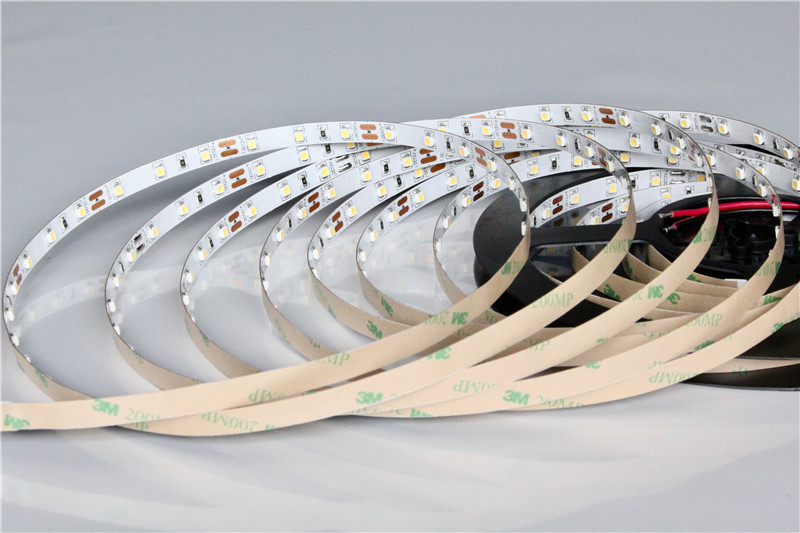

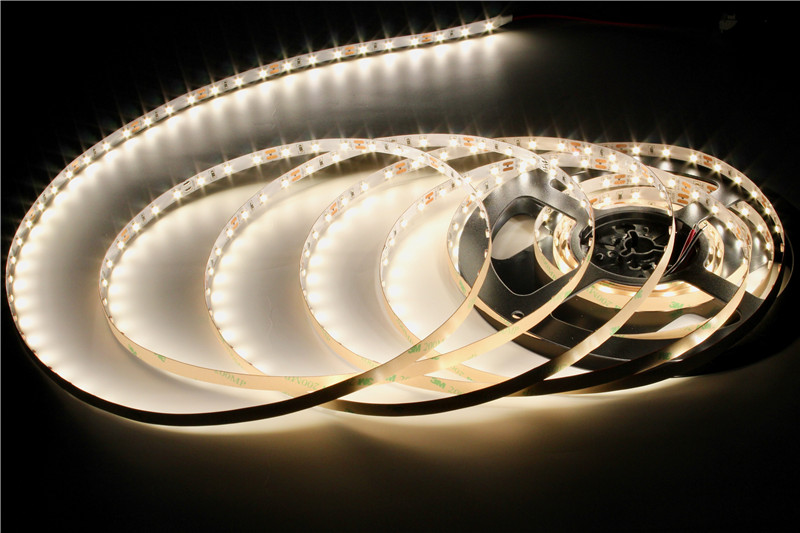

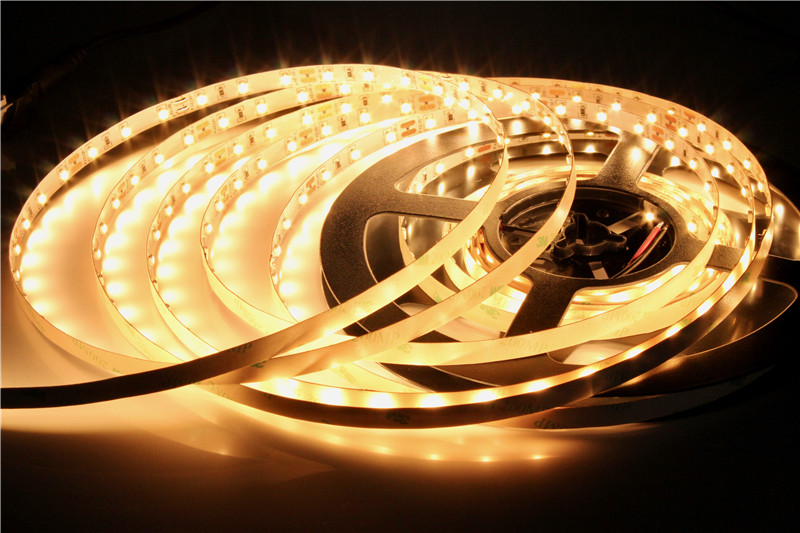

3528-60-12V 24V-5mm 8mm LED Flexible Strip Light

All kinds of Kelvin and Color available that meet the needs of rich light effects.

IP Rate:

Send email to us

Product Detail

Product Tags

Model No. VS-F300-12V/24V-3528-5mm/8mm

● Cut Length:(mm): 50mm for 12V; 100mm for 24V

● Number of LEDs / Meter: 60

● Power (W/M): 4.8W

● Input voltage (V) : 12V/24V DC

● CRI：>90

● Beam Angle: 120°

● FPC Width (mm): 5mm or 8mm

● IP Rate: IP20, IP65, IP67, IP68

● Warranty: 3 years

● Work Environment: -25°～ 45°

● Installation: 3M tape/ Mounting clips/ Aluminum profiles

What is 3528 LED Strips and Why 3528 LED Strip?

3528 SMD LED Strips, just from its name, 3528 SMD LED, We know its size: 3.5mm X 2.8mm. It is the most early taken LED and even widely use nowdays.
It is not bright enough compare with 2835 SMD LED and 5050 SMD LED. But, also lower power consumption compare with them. You can choose it according to your application.

Parts of our 3528 LED Strips from us below, more detailed list, just contact with us for it now!

60LEDs/Meter
Emitting Color	Kelvin	CRI	LED Quantity	Widness of FPC	Work voltage	Power	Cutting Size (mm)
Cool white	6000-6500K	>90	60LEDs/m, 300LEDs/roll	5mm or 8mm	DC12V. DC24V	4.8W/M. 24W/Roll 5Meter a roll	DC12V:50mm. DC24V:100mm
Natural white	4000-4500K
Warm white	2900-3100K
96LEDs/Meter
Cool white	6000-6500K	>90	96LEDs/m, 480LEDs/roll	8mm	DC12V. DC24V	7.6W/M. 38W/Roll 5Meter a roll	DC24V:50mm
Natural white	4000-4500K
Warm white	2900-3100K
120LEDs/Meter
Cool white	6000-6500K	>90	120LEDs/m, 600LEDs/roll	5mm or 8mm	DC12V DC24V	9.6W/M. 48W/Roll 5Meter a roll	DC12V:25mm DC24V:50mm
Natural white	4000-4500K
Warm white	2900-3100K
Blue	455-465nm
Green	520-530nm
Red	620-630nm
Yellow	585-595nm
Orange	595-605nm
240LEDs/Meter
Cool white	6000-6500K	>90	240LEDs/m, 1200LEDs/roll	10mm or 15mm	DC12V. DC24V	19.2 /M. 96W/Roll 5Meter a roll.
Natural white	4000-4500K
Warm white	2900-3100K
120LEDs/Meter
CCT	2800-6000K	>90	120LEDs/m, 600LEDs/roll	10mm	DC12V DC24V	9.6W/M. 48W/Roll 5Meter a roll
60LEDs/Meter
RGB		>90	60LEDs/m, 300LEDs/roll	10mm	DC12V	4.8W/M. 24W/Roll 5Meter a roll
