● Cut Length:(mm): 25mm for 12V; 50mm for 24V |
● Number of LEDs / Meter: 120 |
● Power (W/M): 9.6W |
● Input voltage (V) : 12V/24V DC |
● CRI:>90 |
● Beam Angle: 120° |
● FPC Width (mm): 5mm or 8mm |
● IP Rate: IP20, IP65, IP67, IP68 |
● Warranty: 3 years |
● Work Environment: -25°~ 45° |
● Installation: 3M tape/ Mounting clips/ Aluminum profiles |

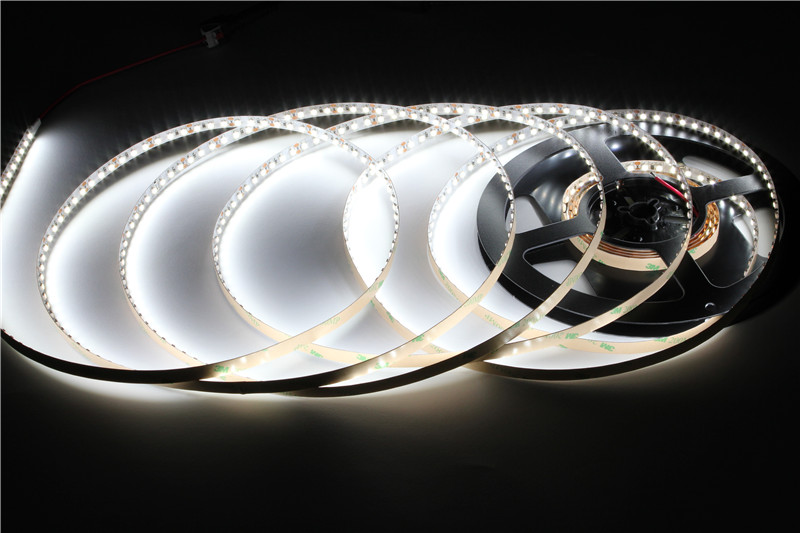

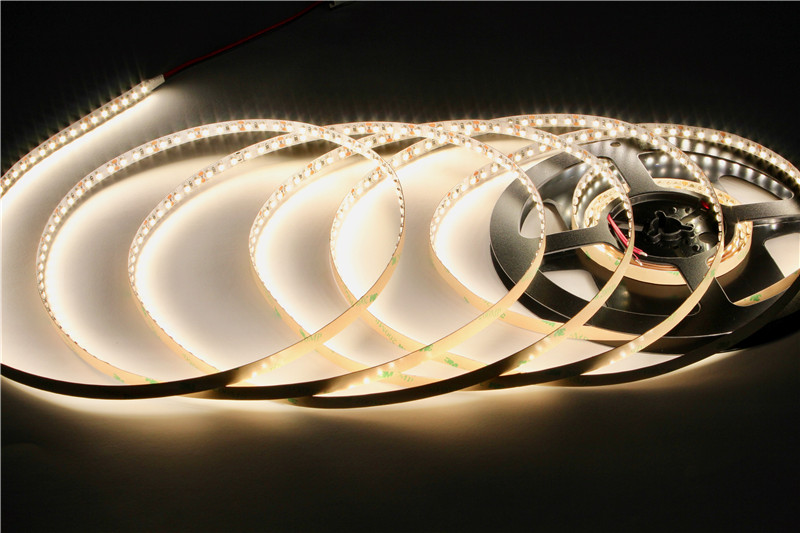

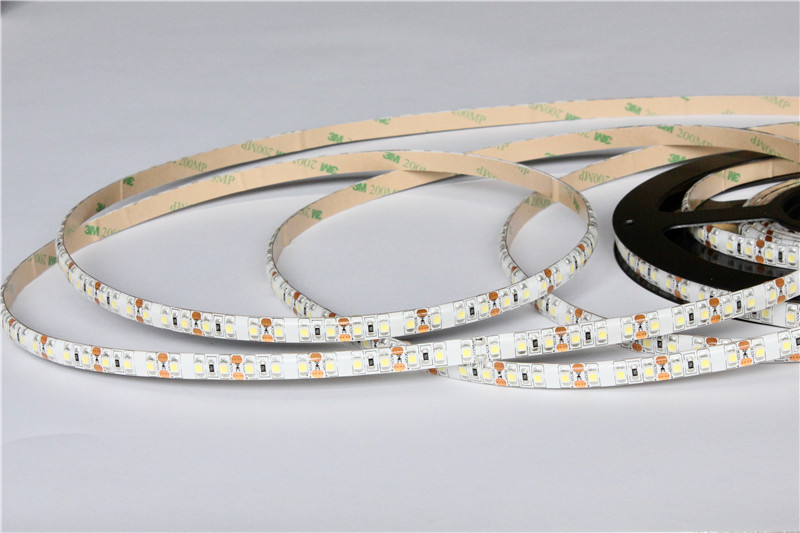

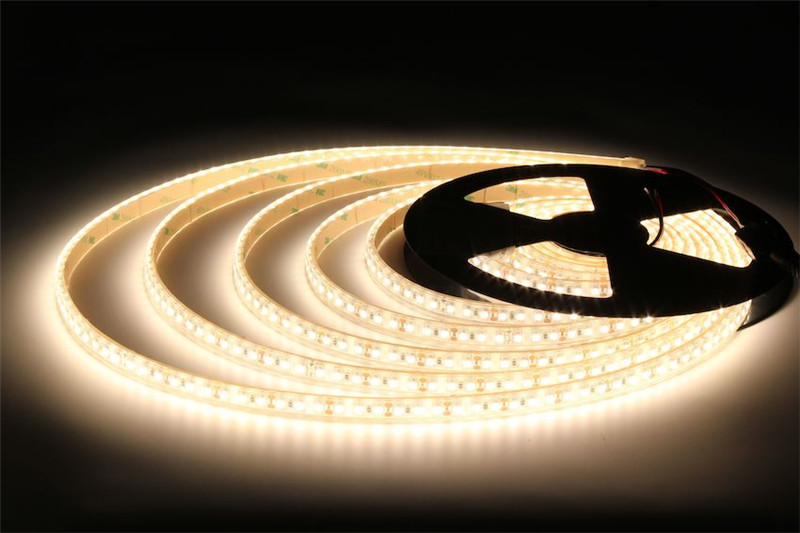

3528 SMD LED Strips, just from its name, 3528 SMD LED, We know its size: 3.5mm X 2.8mm. It is the most early taken LED and even widely use nowdays.
It is not bright enough compare with 2835 SMD LED and 5050 SMD LED. But, also lower power consumption compare with them. You can choose it according to your application.
60LEDs/Meter | |||||||
Emitting Color | Kelvin | CRI | LED Quantity | Widness of FPC | Work voltage | Power | Cutting Size (mm) |
Cool white | 6000-6500K | >90 | 60LEDs/m, 300LEDs/roll | 5mm or 8mm | DC12V. DC24V | 4.8W/M. 24W/Roll 5Meter a roll |
DC12V:50mm. DC24V:100mm |
Natural white | 4000-4500K | ||||||
Warm white | 2900-3100K | ||||||
96LEDs/Meter | |||||||
Cool white | 6000-6500K | >90 | 96LEDs/m, 480LEDs/roll | 8mm | DC12V. DC24V | 7.6W/M. 38W/Roll 5Meter a roll |
DC24V:50mm |
Natural white | 4000-4500K | ||||||
Warm white | 2900-3100K | ||||||
120LEDs/Meter | |||||||
Cool white | 6000-6500K | >90 | 120LEDs/m, 600LEDs/roll | 5mm or 8mm | DC12V DC24V |
9.6W/M. 48W/Roll 5Meter a roll |
DC12V:25mm DC24V:50mm |
Natural white | 4000-4500K | ||||||
Warm white | 2900-3100K | ||||||
Blue | 455-465nm | ||||||
Green | 520-530nm | ||||||
Red | 620-630nm | ||||||
Yellow | 585-595nm | ||||||
Orange | 595-605nm | ||||||
240LEDs/Meter | |||||||
Cool white | 6000-6500K | >90 | 240LEDs/m, 1200LEDs/roll | 10mm or 15mm | DC12V. DC24V | 19.2 /M. 96W/Roll 5Meter a roll. |
|
Natural white | 4000-4500K | ||||||
Warm white | 2900-3100K | ||||||
120LEDs/Meter | |||||||
CCT |
2800-6000K | >90 | 120LEDs/m, 600LEDs/roll | 10mm | DC12V DC24V | 9.6W/M. 48W/Roll 5Meter a roll |
|
60LEDs/Meter | |||||||
RGB |
>90 | 60LEDs/m, 300LEDs/roll | 10mm | DC12V | 4.8W/M. 24W/Roll 5Meter a roll |
